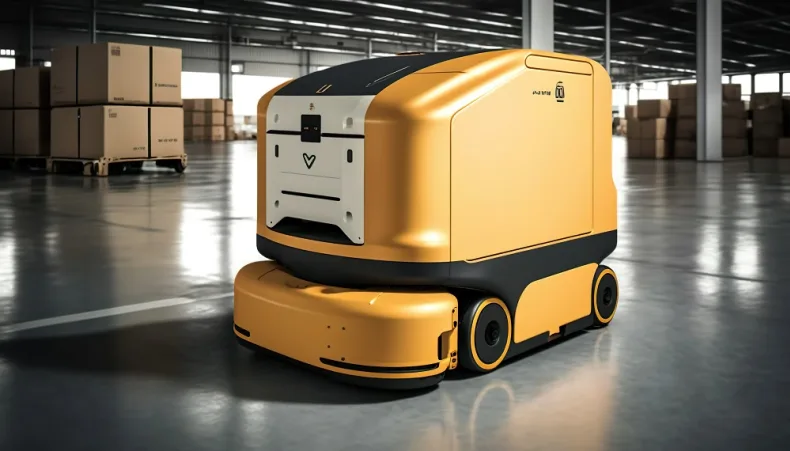

Patent Automated Guided Vehicle (AGV)

This intelligent Mobile Robot is easily deployed for automatic forklift tasks. It has an effective working range from floor to 3m, designed to work with EUR-pallet.

Specifications

• iMR dimensions: 2100 mm x 930 mm x 2530 mm
• iMR weight 1700 kg
• Lifting capacity 1500 kg
• Lifting range 0 mm - 3100 mm
• Lifting method Hydraulic
• Speed (empty) 1500 mm / s
• Speed (full) 1200 mm / s
• Navigation Laser and Natural
• Feature Stopping accuracy ± 20mm
• Operation voltage 24 V
• Battery type LiFePO4, non swappable
• Battery capacity 236 / 354 Ah
• Safety Lidar 360°, 2 emergency button (left and right)
• Environment Indoor
